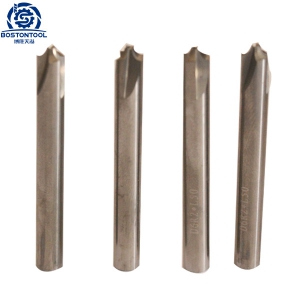

- 详细描述
技术参数/TECHNOLOGY PARAMETERS
| 规格 | ||||||
| 内R角 | 小径 | 大径 | 柄长 | 总长 | 齿数 | |
| R | ±0.05 | d1(±0.1) | D（h8) | D（h6) | L | Z |
| 1.5 | ±0.03 | 4 | 6 | 6 | 57 | 3 |
| 2 | ±0.03 | 4 | 6 | 6 | 57 | 3 |
| 2.5 | ±0.03 | 4 | 6 | 6 | 57 | 3 |
| 3 | ±0.03 | 4 | 8 | 8 | 63 | 4 |
| 3.5 | ±0.03 | 4 | 8 | 8 | 63 | 4 |
| 4 | ±0.03 | 4 | 8 | 8 | 63 | 4 |
| 4.5 | ±0.03 | 5 | 10 | 10 | 72 | 4 |
| 5 | ±0.03 | 5 | 10 | 10 | 72 | 4 |
| 5.5 | ±0.05 | 5 | 12 | 12 | 83 | 4 |
| 6 | ±0.05 | 6 | 14 | 14 | 83 | 4 |
| 6.5 | ±0.05 | 6 | 16 | 16 | 92 | 4 |
| 7 | ±0.05 | 8 | 20 | 20 | 104 | 4 |
| 规格 | ||||||
| 内R角 | 小径 | 大径 | 柄长 | 总长 | 齿数 | |
| R | ±0.05 | d1(±0.1) | D（h8) | D（h6) | L | Z |
| 0.5 | ±0.03 | 6 | 9 | 10 | 60 | 3 |
| 0.75 | ±0.03 | 6 | 9.5 | 10 | 60 | 3 |
| 0.1 | ±0.03 | 6 | 10 | 10 | 60 | 3 |
| 1.25 | ±0.03 | 6 | 10.5 | 10 | 60 | 3 |
| 1.5 | ±0.03 | 6 | 11 | 10 | 60 | 3 |
| 2 | ±0.03 | 6 | 12 | 12 | 65 | 3 |
| 2.5 | ±0.05 | 6 | 13 | 12 | 65 | 3 |
| 3 | ±0.05 | 6 | 14 | 12 | 65 | 3 |
| 3.5 | ±0.05 | 6 | 15 | 12 | 70 | 3 |
| 4 | ±0.05 | 6 | 16 | 12 | 70 | 3 |
| 4.5 | ±0.05 | 7 | 18 | 16 | 75 | 4 |
| 5 | ±0.05 | 7 | 19 | 16 | 75 | 4 |
| 6 | ±0.05 | 8 | 22 | 16 | 75 | 4 |
| 7 | ±0.08 | 8 | 24 | 16 | 75 | 4 |
| 8 | ±0.08 | 9 | 27 | 20 | 90 | 4 |
| 9 | ±0.08 | 9 | 29 | 20 | 90 | 4 |
| 10 | ±0.08 | 10 | 32 | 25 | 90 | 4 |
| 12 | ±0.08 | 12 | 38 | 32 | 110 | 4 |
| 12.5 | ±0.08 | 12 | 39 | 32 | 110 | 4 |
| 规格 | ||||||
| 内R角 | 小径 | 大径 | 柄长 | 总长 | 齿数 | |
| R | ±0.05 | d1(±0.1) | D（h8) | D（h6) | L | Z |
| 0.2 | ±0.03 | 5.6 | 6 | 6 | 58 | 4 |
| 0.3 | ±0.03 | 5.4 | 6 | 6 | 58 | 4 |
| 0.4 | ±0.03 | 5.2 | 6 | 6 | 58 | 4 |
| 0.5 | ±0.03 | 7 | 8 | 8 | 70 | 4 |
| 0.6 | ±0.03 | 6.8 | 8 | 8 | 70 | 4 |
| 0.8 | ±0.03 | 6.4 | 8 | 8 | 70 | 4 |
| 1 | ±0.03 | 6 | 8 | 8 | 70 | 4 |
| 1.5 | ±0.03 | 7 | 10 | 10 | 75 | 4 |
| 2 | ±0.03 | 6 | 10 | 10 | 75 | 4 |
| 2.5 | ±0.03 | 7 | 12 | 12 | 75 | 4 |
| 3 | ±0.05 | 6 | 12 | 12 | 75 | 4 |
| 3.5 | ±0.05 | 9 | 16 | 16 | 75 | 4 |
| 4 | ±0.05 | 8 | 16 | 16 | 80 | 4 |
| 4.5 | ±0.05 | 7 | 16 | 16 | 80 | 4 |
| 5 | ±0.05 | 10 | 20 | 20 | 80 | 4 |
| 6 | ±0.05 | 8 | 20 | 20 | 80 | 4 |
