Hole drill bit with integral hard alloy thread bottom
next

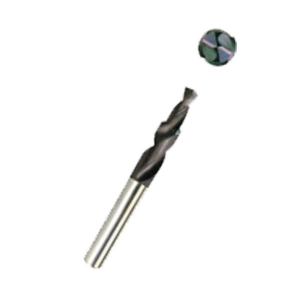

Hole drill bit with integral hard alloy thread bottom
Description:

Handle can be made according to user requirements (straight shank or sidewall)

  • Product Details

TECHNOLOGY PARAMETERS

Specifications
Blade diameter Shank diameter The slot length Total length Blade length Long handle Blade diameter
d1 d L2 L L1 L3 d2
3.40 6.00 28.00 66.00 11.40 36.00 4.50
4.30 6.00 28.00 68.00 13.60 36.00 6.00
5.00 8.00 41.00 79.00 16.50 36.00 7.00
6.80 10.00 47.00 89.00 21.00 40.00 9.50
8.50 12.00 55.00 102.00 25.50 45.00 12.00
10.20 14.00 60.00 107.00 30.00 45.00 14.00
12.00 16.00 65.00 115.00 34.50 48.00 16.00
14.00 18.00 73.00 123.00 38.50 48.00 18.00

Handle can be made according to user requirements (straight shank or sidewall)

Can realize high speed wet processing of aluminum alloy or dry processing
