Home >> Milling >> Mirror aluminum series >> Corrugated aluminum milling cutter

《prev next》

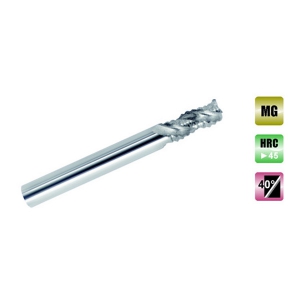

Corrugated aluminum milling cutter

Description:

1.Please use the high precision machine tool and tool holder. 2.please use the air cooling or not easy to produce smoke cutting fluid. 3.Recommended side milling Climb milling machining.

Product Details

WC=90 Co=10 HV30=1571 Bending=3750N/mm2m Hardness=91.8 Particle size=0.6ηm

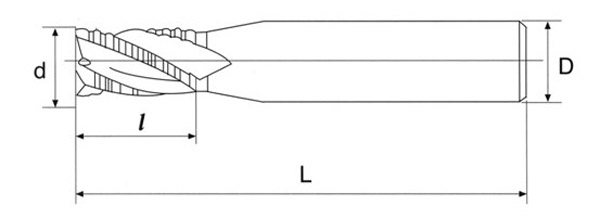

carbide end mill bits sizes

Brand name	Cutting Diameter	Cutting Length	Overall Length	Shank Diameter	Name of Flutes (Z)
Bostontool	6	18	50	6	3/4
Bostontool	8	24	60	8	3/4
Bostontool	10	30	75	10	3/4
Bostontool	12	32	75	12	3/4
Bostontool	16	45	100	16	3/4
Bostontool	20	45	100	20	3/4

★Please pay special attention to:

1.Please use the high precision machine tool and tool holder.

2.please use the air cooling or not easy to produce smoke cutting fluid.

3.Recommended side milling Climb milling machining.

4.Machine tools and the poor installation of the workpiece, the case will produce vibration and abnormal sound, this time should be the next table speed and feed rate decreased.

5.Under the condition of non interference, the tool can be suspended as long as possible.

Cutting condition:

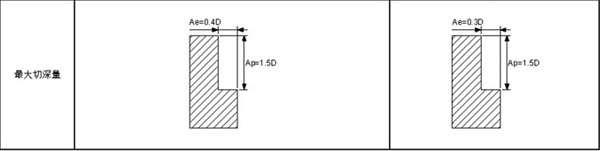

face cutting
Processed material	cast iron		Carbon steel, alloy steel		Carbon steel, alloy steel -30HRC		Pre hardened steel, Quenched and tempered -40HRC		stainless steel
Processed material	nodular cast iron		-750N/mm2		Carbon steel, alloy steel -30HRC		Pre hardened steel, Quenched and tempered -40HRC		stainless steel
diameter	speed	Feed rate	speed	Feed rate	speed	Feed rate	speed	Feed rate	speed	Feed rate
(mm)	(min-1)	(mm/min)	(min-1)	(mm/min)	(min-1)	(mm/min)	(min-1)	(mm/min)	(min-1)	(mm/min)
6	6350	760	5300	640	4500	360	3450	280	2650	210
7	5460	760	4550	640	3650	360	3000	280	2250	310
8	4750	760	4000	640	3400	410	2650	310	2000	240
9	4250	760	3540	640	2850	410	2300	310	1750	240
10	3800	760	3200	640	2700	430	2050	330	1600	260
11	3470	760	2900	640	2400	430	1850	330	1450	260
12	3200	770	2250	650	1950	470	1500	360	1150	280
16	2400	770	2000	640	1700	480	1300	360	1000	280
20	1900	760	1600	610	1350	470	1050	350	800	260

★Please pay special attention to:

1.Please use the high precision machine tool and tool holder.

2.please use the air cooling or not easy to produce smoke cutting fluid.

3.Machine tools and the poor installation of the workpiece, the case will produce vibration and abnormal sound, this time should be the next table speed and feed rate decreased.

4.Under the condition of non interference, the tool can be suspended as long as possible.

Cutting condition:

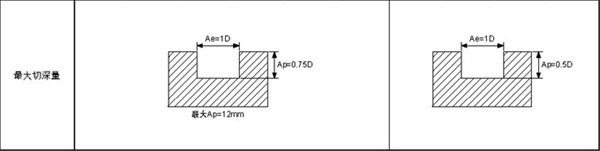

slot milling
Processed material	cast iron		Carbon steel, alloy steel		Carbon steel, alloy steel -30HRC		Pre hardened steel, Quenched and tempered steel -40HRC		stainless steel
Processed material	nodular cast iron		-750N/mm2		Carbon steel, alloy steel -30HRC		Pre hardened steel, Quenched and tempered steel -40HRC		stainless steel
cutting speed	80-120m/min		70-100m/min		60-90m/min		40-70m/min		30-60m/min
diameter	speed	Feed rate	speed	Feed rate	speed	Feed rate	speed	Feed rate	speed	Feed rate
(mm)	(min-1)	(mm/min)	(min-1)	(mm/min)	(min-1)	(mm/min)	(min-1)	(mm/min)	(min-1)	(mm/min)
6	5300	640	4500	540	3700	300	2900	230	2400	190
7	4500	630	3800	540	3200	300	2500	230	2050	190
8	4000	640	3400	540	2800	340	2200	260	1800	220
9	3500	630	3000	540	2450	340	1950	260	1600	220
10	3200	640	2700	540	2250	360	1750	280	1450	230
11	3000	630	2450	540	2050	360	1600	280	1300	230
12	2650	640	2250	540	1850	370	1450	290	1200	240
16	2000	640	1700	540	1400	390	1100	310	900	250
20	1600	640	1350	510	1100	390	900	300	700	230
