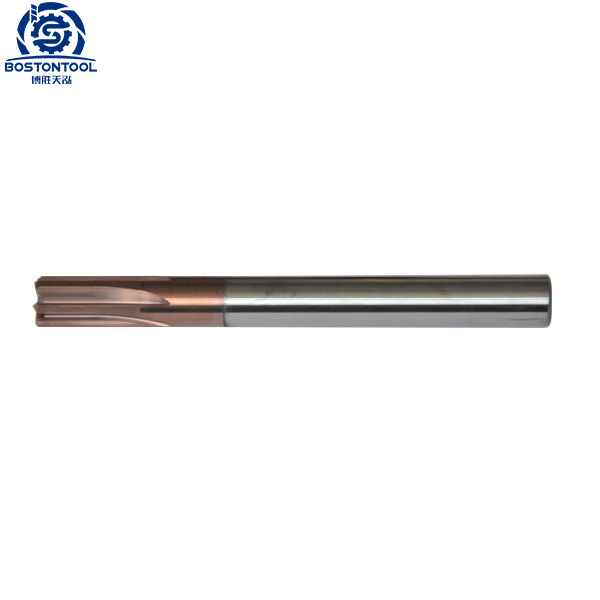

Solid carbide straight shank straight fluted reamer
Description:
Shank can be made according to user requirements (straight shank or sidewall),Please specify when ordering through holes or blind holes.
- Product Details
TECHNOLOGY PARAMETERS
| specification | ||||
| Blade diameter | Shank Diameter | Slot length | Overall Length | Flutes |
| d1 | d2 | L2 | L1 | Z |
| 4 | 4 | 20 | 55 | 6 |
| 5 | 5 | 22 | 60 | 6 |
| 6 | 6 | 22 | 60 | 6 |
| 7 | 7 | 25 | 70 | 6 |
| 8 | 8 | 25 | 70 | 6 |
| 9 | 9 | 25 | 70 | 6 |
| 10 | 10 | 25 | 70 | 6 |
| 11 | 11 | 28 | 80 | 6 |
| 12 | 12 | 28 | 80 | 6 |
| 13 | 13 | 28 | 80 | 6 |
| 14 | 14 | 32 | 90 | 6 |
| 15 | 15 | 32 | 90 | 6 |
| 16 | 16 | 32 | 90 | 6 |
| 17 | 17 | 32 | 90 | 6 |
| 18 | 18 | 36 | 100 | 6 |
| 19 | 19 | 36 | 100 | 6 |
| 20 | 20 | 36 | 100 | 6 |
Shank can be made according to user requirements (straight shank or sidewall),Please specify when ordering through holes or blind holes.
